Air Source Heat Pumps
Commercial

Cascaded heat pump system provides prestigious lodge with all their heating and hot water requirements

Location
Sandwich, Kent
Client
Princes Golf Club
Products
  • 4 x 12kw AroTHERM Plus Vaillant ASHP
  • 2 x 10kw AroTHERM Plus Vaillant ASHP
  • Elysator Trio 25.1
  • 500 litre buffer cyclinder
  • 3 x 500 litre hot water cylinders

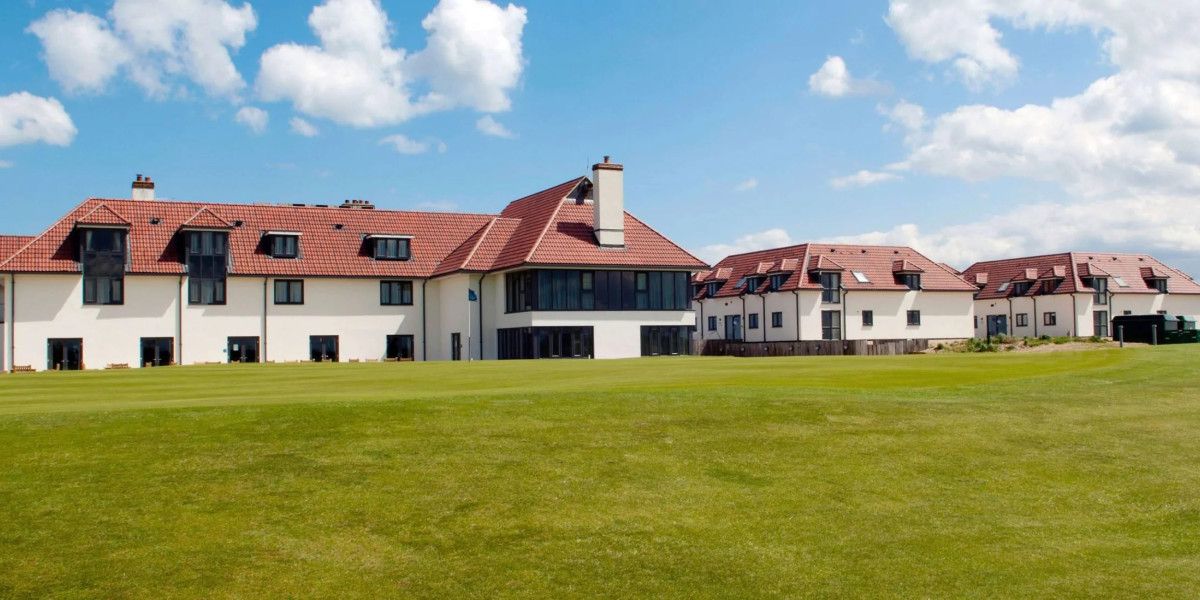

Situated at the entrance of Prince’s 27 hole championship links golf course, The Lodge, with two adjoining Lodge Houses has 38 bedrooms including two lavish Bay and Links suites, The Brasserie, offices, lounge & bar.

The complete heating & hot water system was originally designed with a central plant room fed by numerous ASHP’s located on the roof of the main building and then linked underground to the adjacent lodges.

Unfortunately, the poor design meant constant breakdowns and callouts to repair individual units on an ad hoc basis causing disruption and annoyance to both client & customers.

The solution was to provide individual heating & hot water to the isolated lodges via air source heat pumps and their own hot water cylinders housed under the stairs, reducing heat losses and speeding up hot water supply.

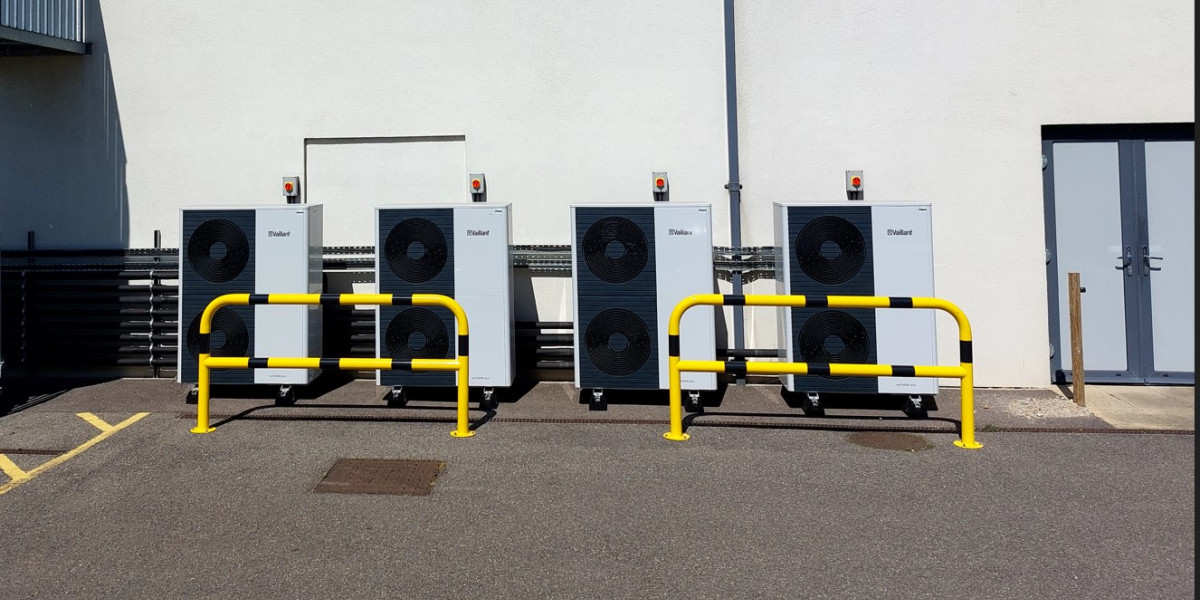

The main building had four 12kw units protected by bollards and sited at ground level. This was to negate the impact of the south westerly prevailing wind that had caused so many previous problems and had been overlooked in the previous design.

The main building was circa 1200m2 with a heat loss of 32Wm2K and heat load requirement of 37kW. A continuous demand for hot water with 14 guest rooms meant hot water production was paramount.

The smaller 400m2 lodges were serviced by their own their own heat pumps located adjacent to the building and in a neatly constructed slatted secure housing.

Testimonial:-

"I would highly recommend Solaris Energy to anybody looking into Heat Pump technology. Dan, the owner, certainly knows his stuff and stays on top of the technology available. You can be sure that the service you receive and the quality of the workmanship is second to none. From the initial quote to the heat loss survey and then the installation, the whole process ran smoothly and without any problems.

We had a problematic system that had several design flaws, which resulted in repeated failures. We now have a new Vaillant heat pump system that has been carefully designed and well thought out. We are happy with our new system and safe in the knowledge that the system is backed with a 7 year warranty."
